Pipes

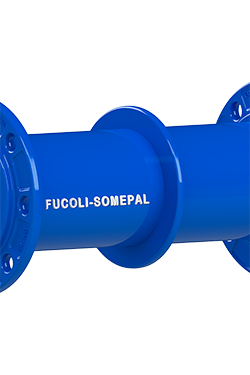

Flanged spigot pipe with puddle flange
09.500

Datasheet

Features:

  • Designed according to EN 545
  • Pipe: ductile cast iron Rm>420MPa, elongation>10%
  • Flange: ductile cast iron EN-GJS-500-7 (GGG50)
  • Internal coating: blast furnace argamassa of cement, proper for drinking water
  • External coating: zinc 200[g/m2] + bituminous paint + blue enamel

Code Description Quantity
402030034 DN 60/65 PN10/16
402030044 DN 80 PN10/16
402030054 DN 100 PN10/16
402030074 DN 125 PN10/16
402030104 DN 150 PN10/16
402030244 DN 200 PN10/16
402030334 DN 250 PN10/16
402030434 DN 300 PN10/16
402030454 DN 350 PN10
4020304546 DN 350 PN16
4020600940800 DN 400 PN10
402060094 DN 400 PN10
4020600946 DN 400 PN16
402060114 DN 450 PN10
4020601146 DN 450 PN16
402060104 DN 500 PN10
4020601046 DN 500 PN16
402060124 DN 600 PN10
4020601246 DN 600 PN16
402060134 DN 700 PN10
4020601346 DN 700 PN16
402060144 DN 800 PN10
4020601446 DN 800 PN16
