Pipes

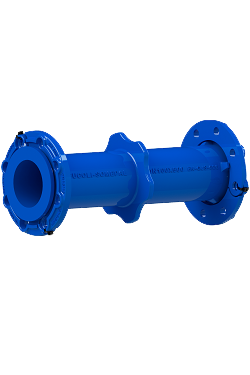

Double movable flanged pipe with puddle flange L = 500 mm
09.501

Datasheet
Certificates

Features:

  • Designed according to EN 545
  • Pipe and flanges: ductile cast iron EN-GJS-500-7 (GGG50)
  • Coating inside and outside: potable epoxy coating ≥ 250µm according to RAL-GZ662 (GSK)

Code Description Quantity
40215010 DN 40 PN10/16 L=500MM
40215210 DN 40 PN25 L=500MM
40215020 DN 50 PN10/16 L=500MM
40215220 DN 50 PN25 L=500MM
40215030 DN 60 PN10/16 L=500MM
40215230 DN 60 PN25 L=500MM
40215040 DN 65 PN10/16 L=500MM
40215240 DN 65 PN25 L=500MM
40215050 DN 80 PN10/16 L=500MM
40215250 DN 80 PN25 L=500MM
40215060 DN 100 PN10/16 L=500MM
40215260 DN 100 PN25 L=500MM
40215070 DN 125 PN10/16 L=500MM
40215270 DN 125 PN25 L=500MM
40215080 DN 150 PN10/16 L=500MM
40215280 DN 150 PN25 L=500MM
40215090 DN 200 PN10/16 L=500MM
40215290 DN 200 PN25 L=500MM
40215100 DN 250 PN10 L=500MM
40215105 DN 250 PN16 L=500MM
40215300 DN 250 PN25 L=500MM
40215110 DN 300 PN10 L=500MM
40215115 DN 300 PN16 L=500MM
40215310 DN 300 PN25 L=500MM
40215120 DN 400 PN10 L=500MM
40215125 DN 400 PN16 L=500MM
40215320 DN 400 PN25 L=500MM
40215130 DN 500 PN10 L=500MM
40215135 DN 500 PN16 L=500MM
40215330 DN 500 PN25 L=500MM
